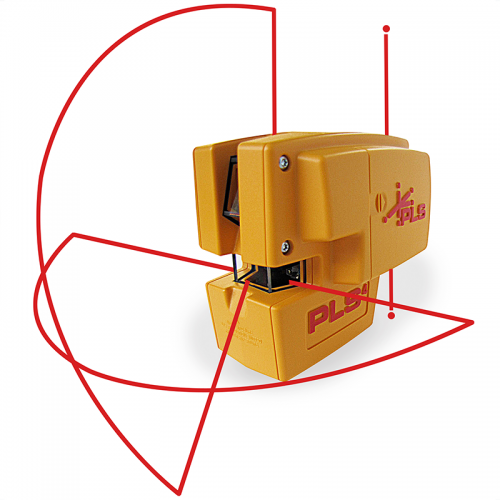

About this product
Featuring a hybrid combination of horizontal-vertical lines and plumb points will speed layout and installation for commercial electricians, HVAC-mechanical, staging and glazing contractors.
Specifications
- Light source: Semiconductor laser diode 635-670 nm, visible
- Working range: +/- 100 feet (outdoor w/detector)
- Cross line accuracy: +/- 1/8" @ 30 feet (+/- 3mm @ 10 meters)
- Point-to-point accuracy: +/- 1/4" @ 100 feet (+/- 6mm @ 30 meters)
- Leveling: Automatic
- Leveling range: +/- 6 deg
- Power supply: 3AA batteries alkaline or rechargeable
- Operating time: +25 hours continuous use with single beam; 12.5 hours both beams
- Operating temp: 0 deg - 122 deg F
- Storage temp: -40 deg F - 158 deg F
- Indicator: Green light: On
- Red light: EXCEEDS TILT/ tilt override #4
- Amber light: Battery Low
- Flashing: pulse beam-lines
- Environment: Water resistant; not submersible
- Dimensions: 2" x 2.5" x 4-3/8"
- Weight: 16 oz. (.45kg) (including batteries)
