About this product

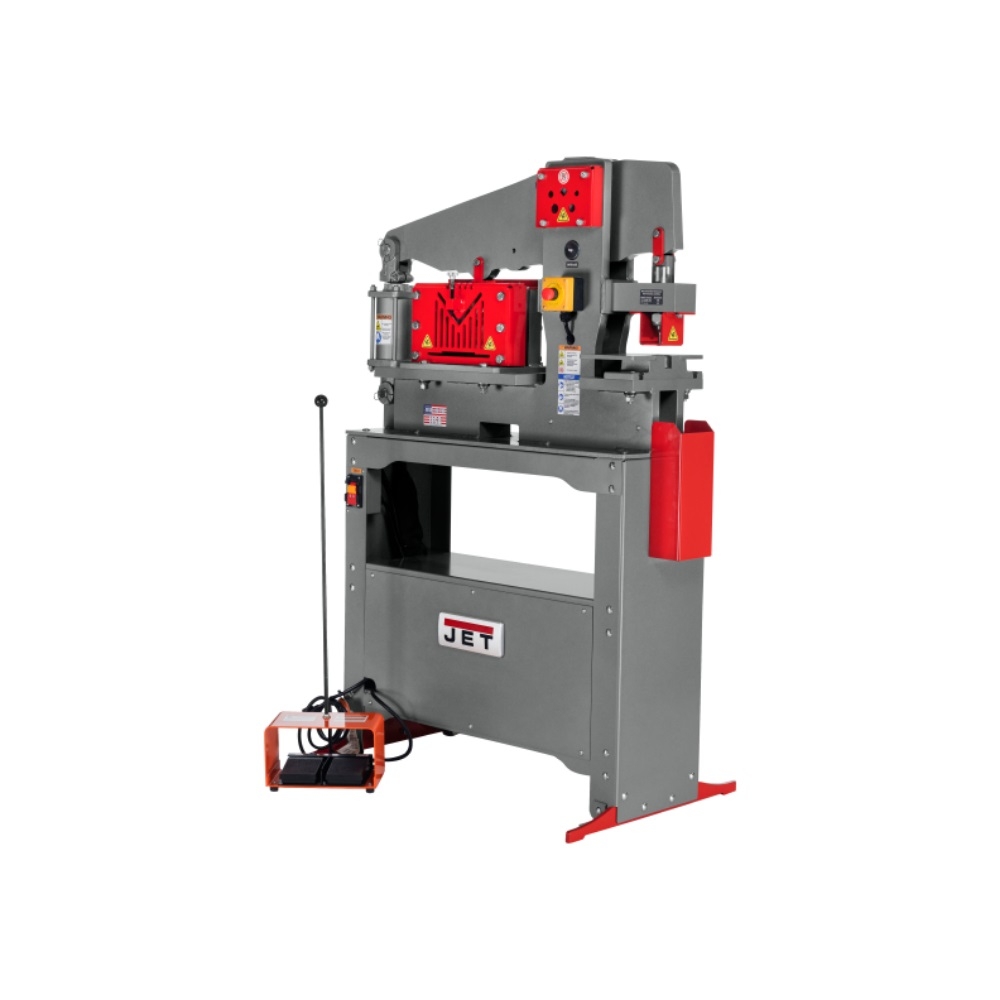

The JET 45 Ton Ironworker offers four versatile workstations—Punch, Flat Bar Shear, Angle Shear, and Rod Shear—designed to meet a variety of user needs. It operates on 115V power, making it portable and suitable for use in many settings. The ironworker features ANSI-compliant guarding on the Angle and Rod Shears, an E-stop with UL listed controls for enhanced operator safety, and a Punch & Die Holder with a Slug Receptacle to maintain a clean and organized work area. The Punch & Die Storage Tray can hold up to 10 sets, while the convenient foot control with a handle allows for easy movement between workstations. Optimized workstation heights help reduce user fatigue, and the precision-machined blades made of high-quality tool steel offer extended life with two cutting edges for the Flat Bar, Angle, and Rod Shears. Additionally, the machine is compatible with most Edwards Punch & Die Sets, including round, square, oblong, hex, and metric sizes.
Specifications
- Stock Number: JT9-756100
- Angle Shear Max Capacity1/4": 3 x 3
- Angle Shear Max Capacity (In.): 3 x 3 x 1/4
- Cylinder (In): 3-1/2" Ram
- Flat Bar Shear Max Capacity 1/4": 8
- Flat Bar Shear Max Capacity 3/8": 4
- Flat Bar Shear Rating (Tons): 45
- Flat Bar Shear Work Height (In.): 40
- Gross Weight (Lbs): 802
- Model Number: JIW-45T
- Motor Amps: 14
- Motor (HP): 1-1/2 HP, 115V, 1Ph
- Motor Speed (RPM): 3500
- Overall Dimensions (L x W x H) (In.): 40 x 24 x 58
- Overall Height (In.): 58
- Prop 65: Cancer and Reproductive Harm
- Punch Max Capacity (In.): 1 diam. In. 1/2 mild steel
- Punch Rating (Tons): 45
- Punch Stroke (In.): 1-1/2
- Punch Work Height (In.): 41
- Rating (Tons): 45
- Rod Shear Max Round (In): 3/4
- Rod Shear Max Square (In): 5/8"
- Rod Shear Work Height (In): 54
- Shipping Dimensions (L x W x H) (In.): 51 x 45 x 64
- Valve Pressure (PSI): 2800
- Warranty: 2 Year
- Weight (Lbs.): 698
- Gross Weight: 802.0
- Net weight: 698.0
- Throat Depth (In.): 5-3/4
- Brand: Jet Tools
