About this product

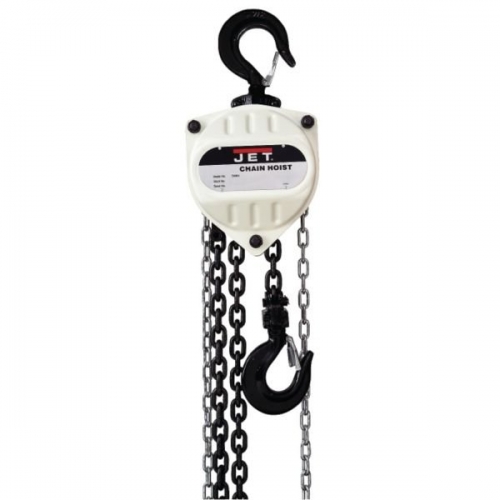

The JET SMH Series manual chain hoists feature impact resistant, lightweight steel construction with durable powder coat finish. The drop forged anchor plate prevents over travel at the hook�s lowest position.
They also have low headroom for easy installation, even in confined areas. Compact and portable with excellent load spotting capabilities. Heat treated grade 80 low wear load chain. Hand chain cover is designed for smooth operation and prevents side pull jamming. Completely enclosed, Weston style automatic brake system for positive load control is standard on all models. Wide throat safety hooks feature heavy duty latches and swivel 360 degrees for easy rigging.
Each one of these hoists is proof tested and certified. Each hoist comes with a completed test certificate from the factory.
Other Features:
Compact and portable for ease of positioning material
Engineered for commercial and industrial lifting applications
All steel construction with a durable powder coat finish
Lightweight, compact design for low headroom applications
Completely enclosed Weston type automatic brake system for positive load spotting
Triple-spur gears provide high efficiency with minimum effort
Heat treated and hardened grade 80 load chain
Smooth rolled edge on hand chain cover prevents side pull jamming
Wide throat drop forged safety hooks for easier rigging
Standard hand chain drop equals lift length
Proof tested with test certificate
Specifications
- Height: 6.8"
- Width: 7.4"
- Length: 11"
- Gross Weight: 27.6 pounds
- Capacity: 1 metric ton
- Rated Capacity: 2205 pounds
- Standard Lift: 10 feet
- Headroom: 15"
- Number of Falls: 1
- Load Chain Diameter: 6.3 mm
- Required hand chain (ft.) to lift load 1': 37
- Required pounds of pull to lift capacity: 80
- Complies with OSHA, ANSI/ASME B30.16 and HST-2 standards
