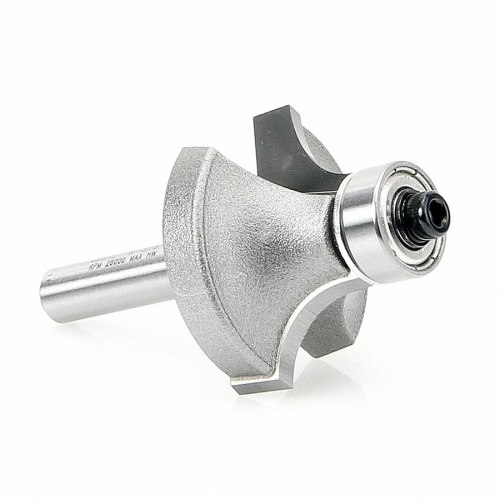

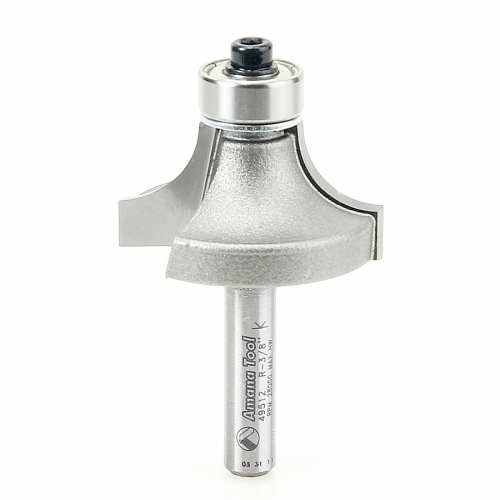

Amana Tool 49512 Carbide Tipped Corner Round 3/8" x 1-1/4" x 5/8" x (1/4" Shank)

Availability: Out of Stock

This item is no longer stocked

Other products by Amana Tool

About this product

This basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a profile, or as a part of a complex one.

Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Specifications

Diameter: 1-1/4"
Radius: 3/8"
Cutting Height: 5/8"
Shank: 1/4"
Overall Length: 2-3/16"
Replacement Bearing: 47706
Flutes: 2
D1: 1/2"
